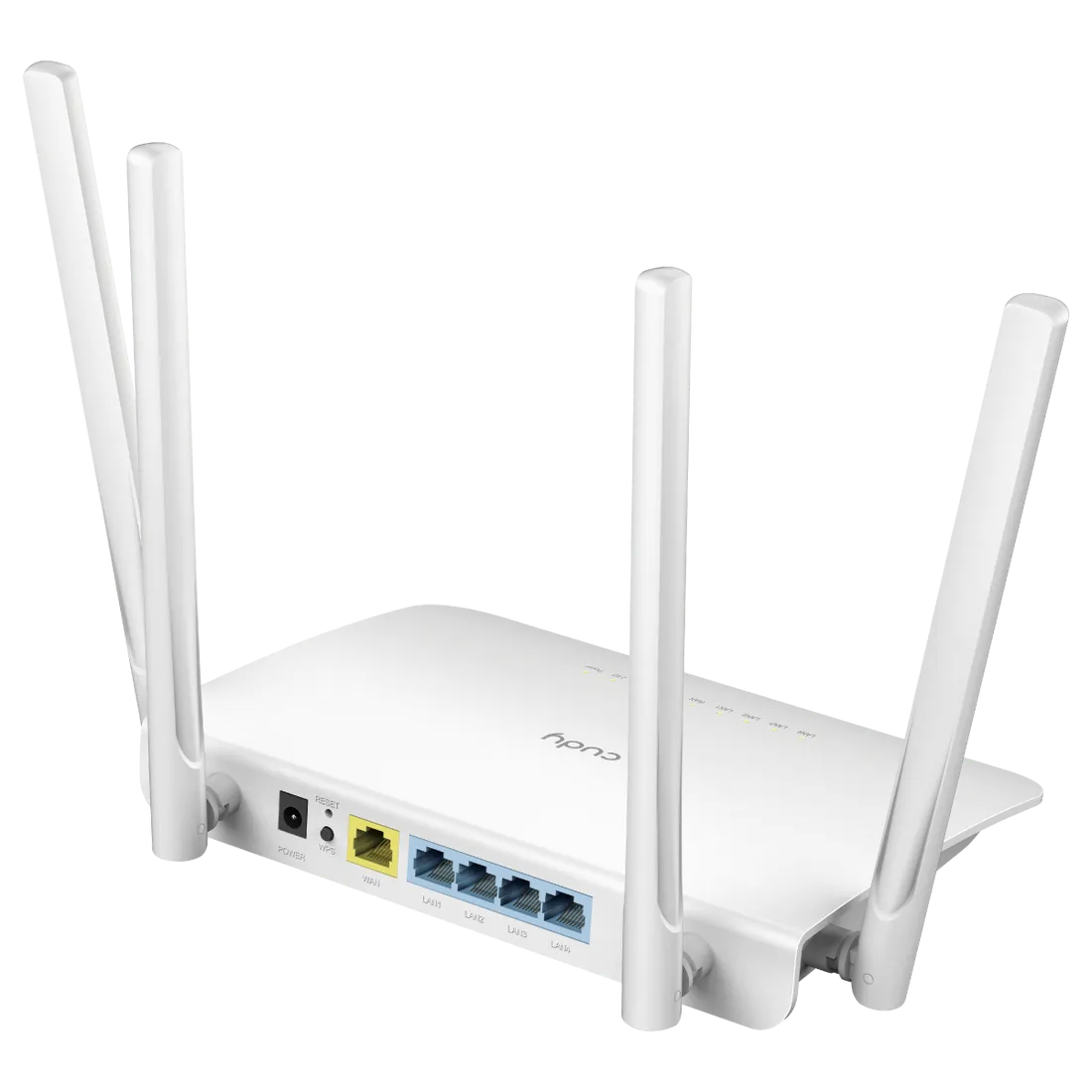

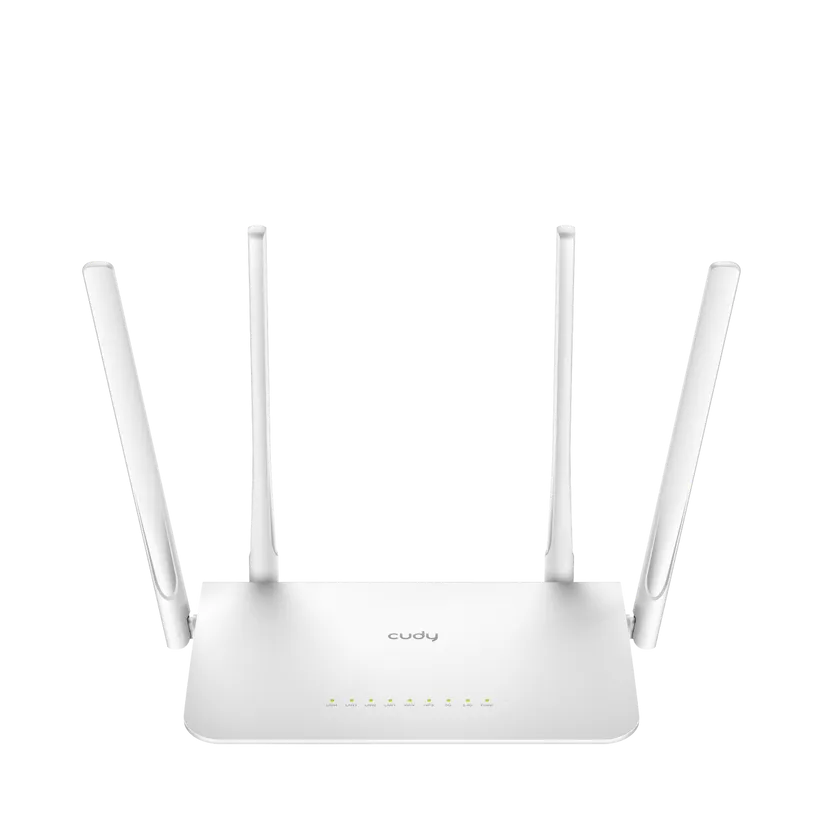

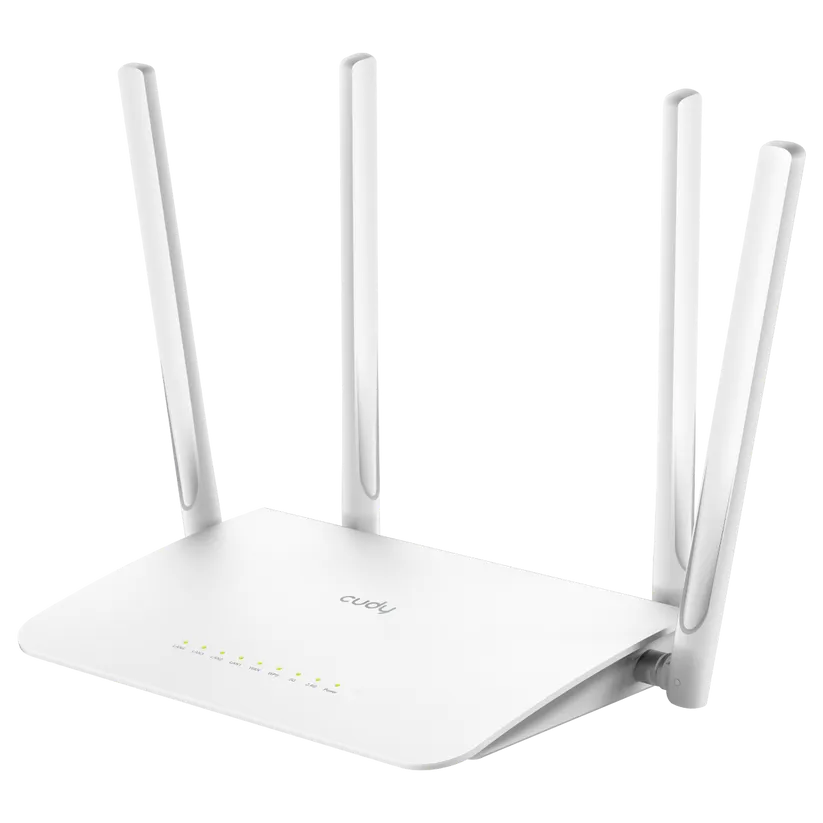

CUDY AC1200 WR1300 Gigabit Mesh Wi-Fi Router

Roll over image to zoom in Click on image to zoom

CUDY AC1200 WR1300 Gigabit Mesh Wi-Fi Router

Save KSh500.00

Itbrands shop ke

Color: White

Variant

Price:

KSh4,500.00 KSh5,000.00

Quantity:

Share this product

Model Version	WR1300 3.0
CPU	CPU Details	880 MHz Dual-Core, MIPS1004Kc
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	128 MB (1 Gbit) DDR3
Wireless	5 GHz Wi-Fi Speed	867 Mbps
	2.4 GHz Wi-Fi Speed	300 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Fixed
	5 GHz Antenna Gain Max	5dBi
	2.4 GHz Antenna Gain Max	5dBi
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces	Gigabit RJ45 Ports	5
	Ethernet Notes	1× WAN port, the rest are LAN ports
	LED	Power 2.4 GHz Wi-Fi 5 GHz Wi-Fi WPS Speed/Link/ACT of Ethernet Port
	Physical Buttons	WPS Button Reset Button
	Power Input	DC Jack
Power	Power Methods	DC
	DC	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
	Max Power Consumption (W)	9.27W
	Idle Power Consumption (W)	3.56W
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Desktop Wall-mount
	Dimension	204.8×137.5×38.3 mm 8.06×5.41×1.51 inches
	Product Weight	EU / US: 319 g (11.25 oz.) ZH: 318.4 g (11.23 oz.)

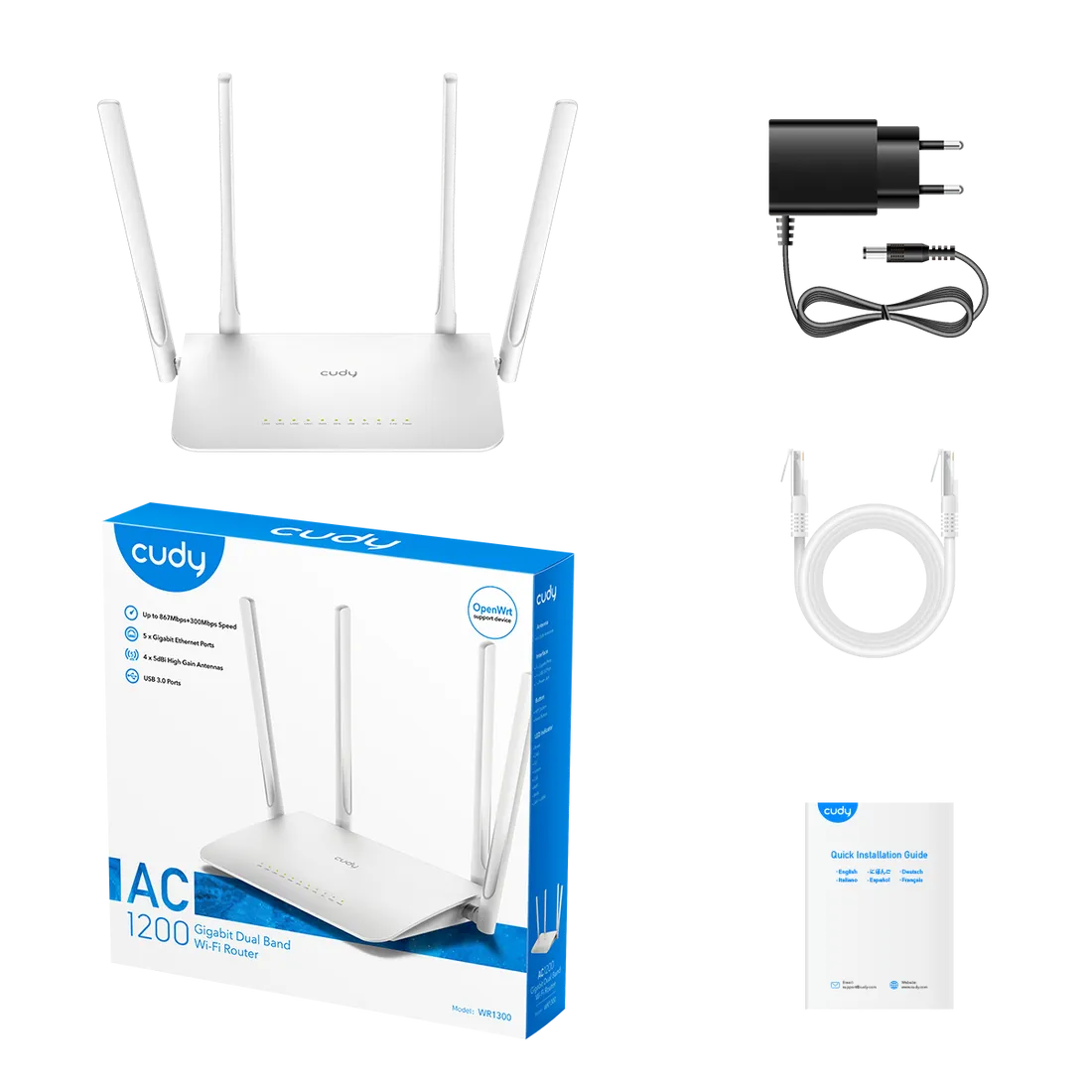

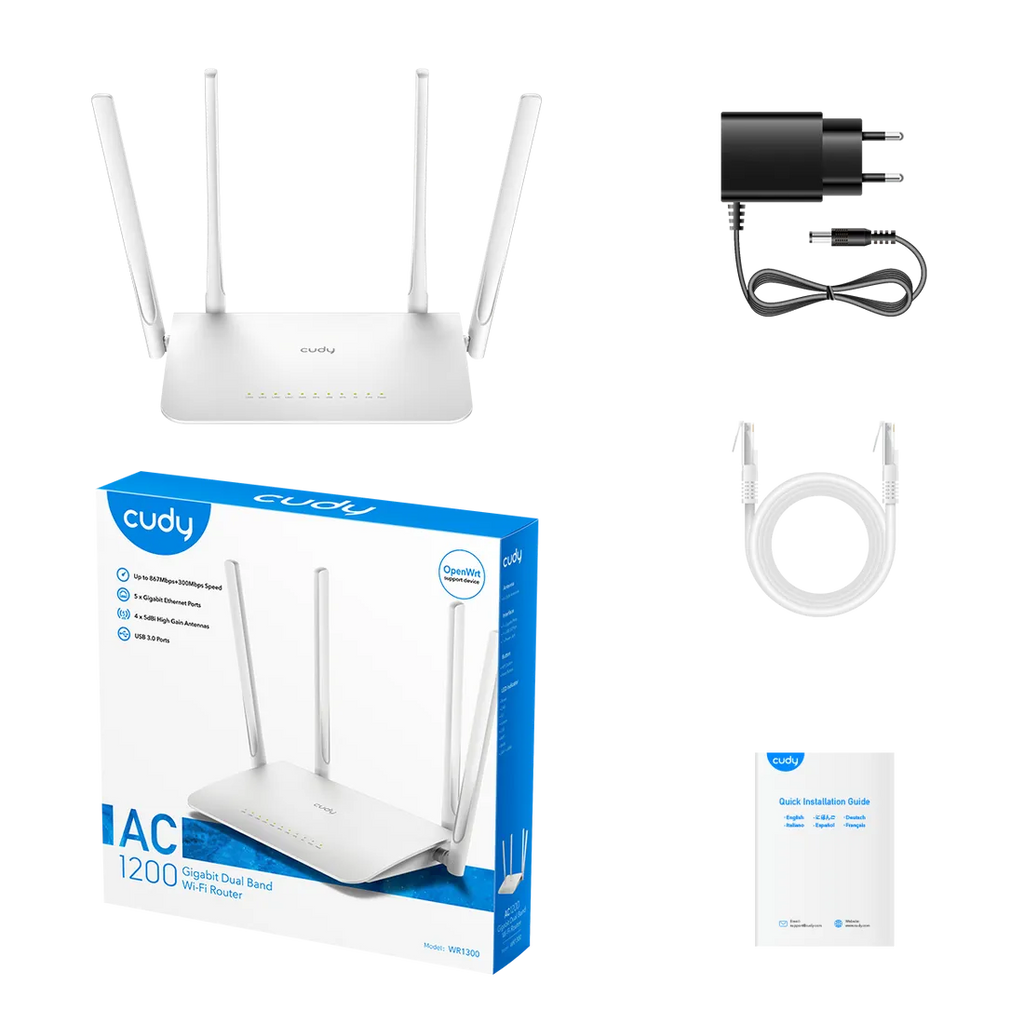

Package Content	WR1300 Power Adapter Ethernet Cable Installation Guide
Ordering Information	Retail Package Weight	BR: 716 g (25.26 oz.) EU / US: 727 g (25.64 oz.) ZH: 666.4 g (23.51 oz.)
	Retail Package Dimension	280×278×56 mm 11.02×10.94×2.2 inches
	Units per Carton	20
	Carton Dimension	59×58×30.3 cm 23.23×22.83×11.93 inches
	Carton Gross Weight	BR: 15.7 kg (34.61 lbs) EU / US: 16.2 kg (35.71 lbs) ZH: 14.7 kg (32.41 lbs)
	Carton Net Weight	BR: 14.3 kg (31.53 lbs) EU / US: 14.5 kg (31.97 lbs) ZH: 13.3 kg (29.32 lbs)

Model Version	WR1300 3.0
Wireless	Wi-Fi Standards	Wi-Fi 5
	Max Wi-Fi Modulation	256-QAM
	Wi-Fi Efficiency	MU-MIMO
	Wi-Fi Efficiency Note	MU-MIMO available on 5 GHz
	Max Capacity	128
	Recommended Client Upper Limit	50
	Max Wi-Fi Channel Width	80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS	True
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	True
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
	Internet Failover Sequence	WAN WISP
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Performance	OpenVPN Client (UL/DL): 22 / 24.7 Mbps OpenVPN Server (UL/DL): 22 / 20.9 Mbps WireGuard Client (UL/DL): 142 / 233.9 Mbps WireGuard Server (UL/DL): 213 / 152 Mbps
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Captive Portal	True
	Wake on LAN	True
	Online Detection	True
	Max Concurrent VPN Tunnels	IPSec: 20 PPTP/L2TP: 16 OpenVPN: 16
General	Max Concurrent Sessions	25000
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed

Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors inclu
